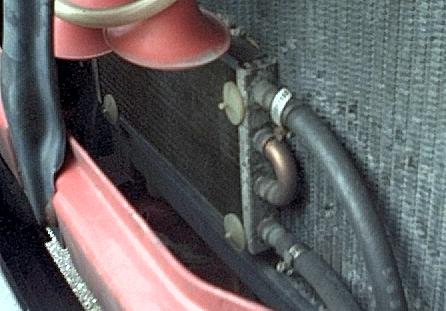

The Forward line from the Radiator (its right side port) is at
the TOP.
The return line to the Rear of the Transmission is on the bottom of
the cooler.
The cooler is mounted to the bottom left side of the radiator.
This was mounted with the pull straps, that are included with the cooler package.
The Lines go: Foward Pump Transmission,
to Radiator
Radiator (other side [return side]) to Top of Trans Cooler (section of
hose added)
Bottom of Trans Cooler: Return Line to Transmission connected directly
here.

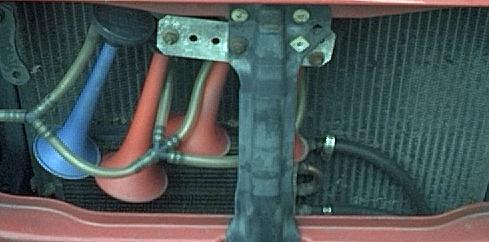

This is a forward view of the Coller, and the Air Hornes that I mounted
under the grille.
