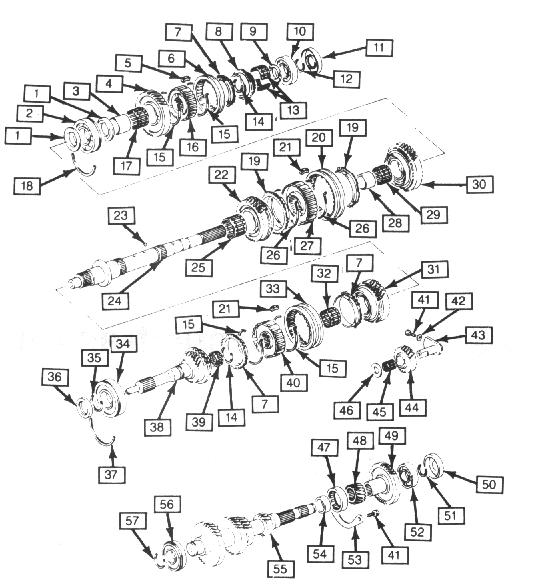

TRACKER/SIDEKICK MANUAL TRANSMISSION


1. Bearing Washer 20. Low Speed Sleeve 39. Needle Bearing
2. Main Shaft Bearing 21. Synchronizer Keay 40. High Speed Hub
3. Main Shaft Reverse Gear Bushing 22. Main Shaft Second Gear 41. Bolt
4. Main Shaft Reverse Gear 23. Main Shaft Washer Ball 42.Washer
5. Synchronizer Key 24. Transmission Main Shaft 43. Reverse Gear Shaft
6. Reverse Sleeve 25. Second Gear Bearing 44. Reverse Idle Gear
7. High Speed Ring 26. Low Speed Ring 45. Reverse Idle Gear Bearing
8. Main Shaft Fifth Gear 27. Low Speed Hub 46. Thrust Washer
9. Fifth Gear Washer 28. Low Gear Bushing 47. Countershaft Center Bearing
10. Main Shaft Rear Bearing 29. Low Gear Bearing 48. Reverse Gear
11. Main Shaft Oil Seal 30. Main Shaft Low Gear 49. Countershaft Fifth Gear
12. Rear Bearing Circlip 31. Main Shaft Third Gear 50. Countershaft Plug
13. Fifth Gear Bearing 32. Third Gear Bearing 51. Rear Bearing Clip
14. High Speed & Reverse Hub Circlip 33. High Speed Sleeve 52. Countershaft Rear Bearing
15. High Speed Spring 34. Input Shaft Bearing 53. Bearing Plate
16. Reverse Hub 35. Bearing Circlip 54. Center Bearing Thrust Washer
17. Main Shaft Reverse Gear Bearing 36. Input Shaft Oil Seal 55. Transmission Countershaft
18. Bearing C-Ring 37. Bearing C-Ring 56. Countershaft Front Bearing
19. Low Speed Ring 38. Input Shaft 57. Front Bearing Circlip

As you can see, a manual transmission is nothing to fool with by yourself, or without expert knowledge in mechanics.
It is best to have the transmission serviced by a qualified technician, or dealer.  In some cases, it will be cheaper to
replace the transmission with a rebuilt unit, or used unit, rather than reparing it.

Overhauling the transmission requires the disassembly, and reassembly of many small parts.  Numerous clearances must be precisely measured, and if necessary, changed with select fitted spacers and other replacement parts.

As statated, time and costs to rebuild is almost assured to exceed that of a rebuilt, or knowingly working used replacement.
