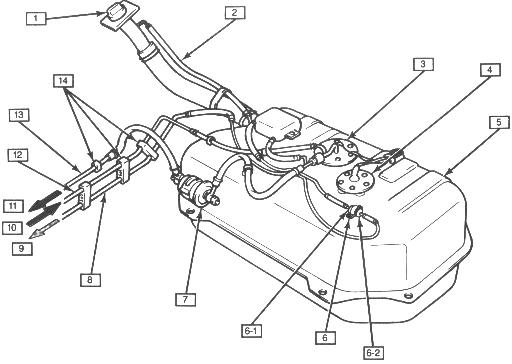

| 1. Fuel Filler Cap | 6. Two-Way Check Valve | 10. Fuel Return (From Injector) |
| 2. Breather Hose | 6-1. Black Side / 6-2. Orange Side | 11. Fuel (To Injector) |
| 3. Fuel PumpAssembly | 7. Fuel Filter | 12. Return Line |
| 4. Fuel Level Sending Unit | 8. Fuel Vapor Line | 13. Fuel Feed Line |
| 5. Fuel Tank | 9. Vapors To Canister | 14. Clamps (to frame) |
CAPACITY 10.6 GALLONS (FROM COMPLETELY EMPTY TANK) As the system is under constant pressure from vapors, FUEL INJECTOR LEAKAGE RATE: One drop per minute or less.
