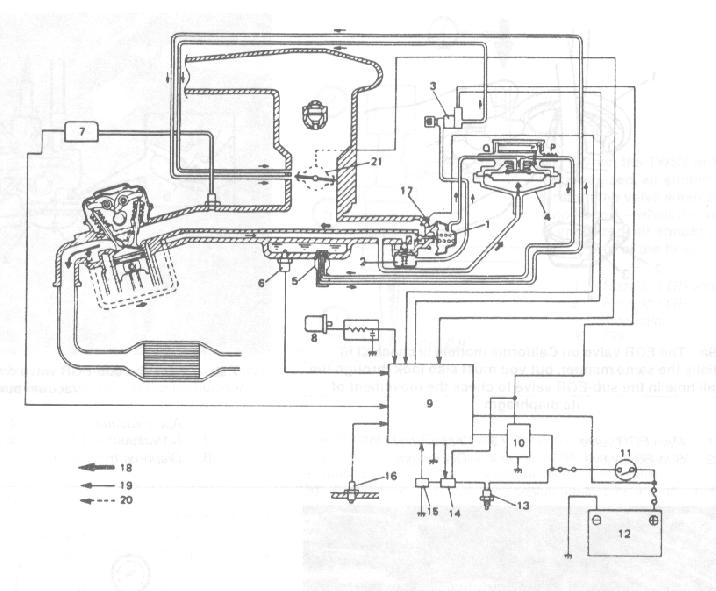

#2: EGR System, California/New York TBI/MPFI Systems
| 1. Main EGR Valve | 8. Ignition Coil | 15. Lock-Up Solenoid (A/T) |
| 2. Sub-EGR Valve | 9. ECM | 16. Fifth Gear Switch (M/T) |
| 3. VSV | 10. Control Relay | 17. Recirculation EG Temp. Sensor |
| 4. EGR Modulator | 11. Main Switch | 18. Exhaust Gas (EG) |
| 5. Bi-Metal VSV (BVSV) | 12. Battery | 19. Vacuum |
| 6. Cooland Tempurature Sensor | 13. Brake Light Switch | 20. Air |
| 7. Pressure Sensor | 14. Lock-Up Relay (A/T) | 21. TPS |
